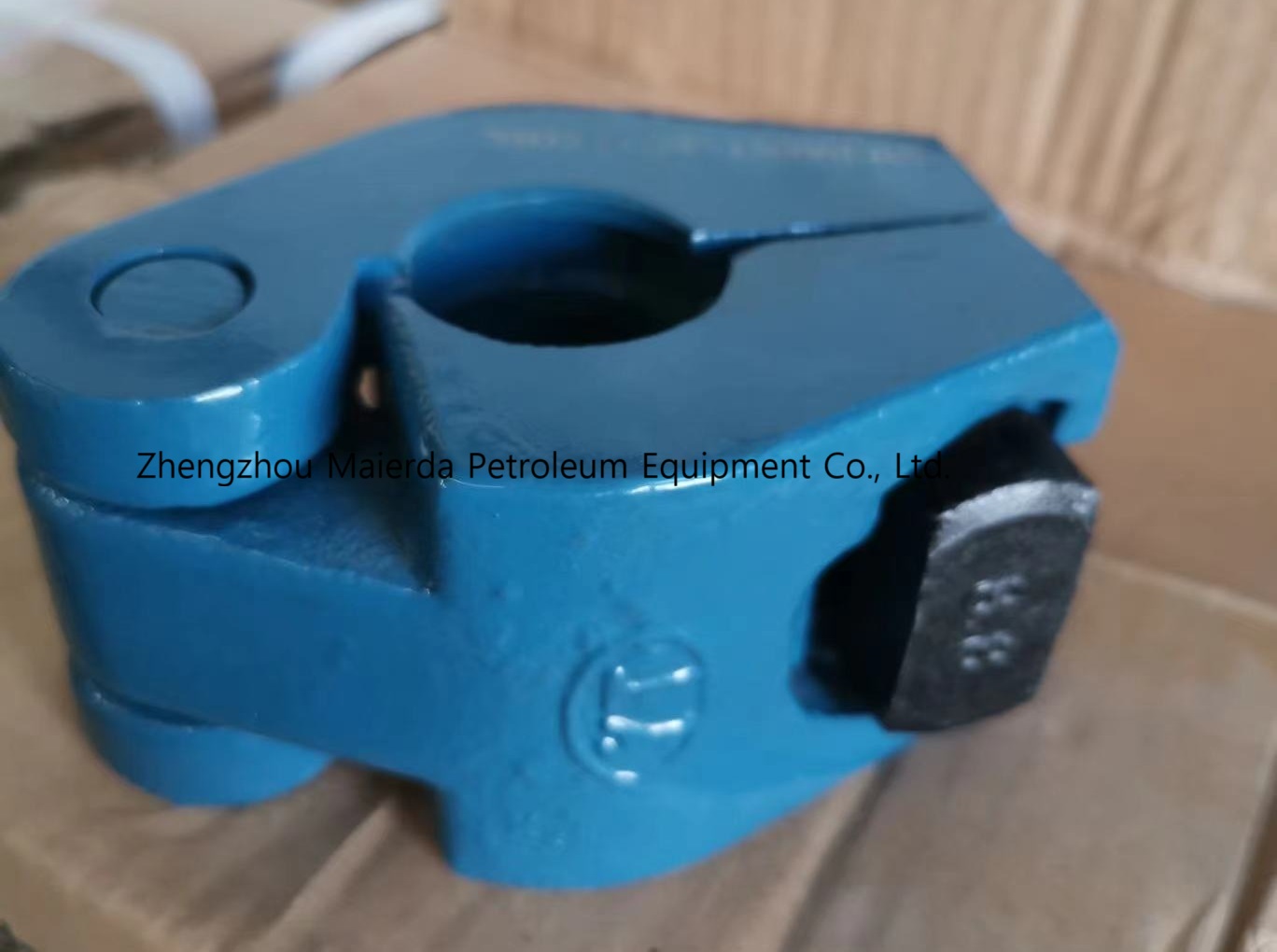

Polished rod clamps are engineered with precision to balance strength, durability, and adaptability. Their performance is defined by a set of critical technical parameters that determine compatibility with different well configurations and operational demands:
Rod Diameter Compatibility: The most fundamental parameter, polished rod clamps are manufactured to fit specific polished rod diameters. Common sizes range from 1-1/4" inches (31.75 mm) to 2.5 inches (63.5 mm), with custom sizes available for specialized wellbore designs. This ensures a tight, non-slip fit that eliminates lateral movement during pumping cycles
Material Composition: To resist corrosion and mechanical stress, clamps are typically constructed from high-grade alloys. The most widely used material is AISI 4140 heat-treated alloy steel, which offers a tensile strength of 110,000 psi (758 MPa) and a hardness rating of 28-32 HRC (Rockwell C Scale). For offshore or high-salinity environments, 316 stainless steel variants are preferred, providing enhanced resistance to chloride-induced corrosion.
Clamping Force: Measured in pounds-force (lbf), clamping force determines the clamp’s ability to hold the polished rod under dynamic loads. Standard models deliver a clamping force of 5,000 lbf to 15,000 lbf, while heavy-duty versions for deep wells (depth > 10,000 feet) can generate up to 25,000 lbf. This force is distributed evenly via replaceable rubber or polyurethane inserts to avoid rod damage.
Operating Temperature Range: Polished rod clamps must function reliably in extreme temperatures. Industrial-grade models typically operate between -40°F (-40°C) and 350°F (177°C), while high-temperature variants (for thermal recovery wells) can withstand up to 500°F (260°C) without material degradation.
Pressure Rating: Designed to handle downhole pressure fluctuations, clamps feature a pressure rating of 0 psi to 3,000 psi for standard applications. For high-pressure wells (e.g., tight gas formations), specialized clamps with pressure ratings up to 10,000 psi are available, equipped with sealed gaskets to prevent fluid leakage.
