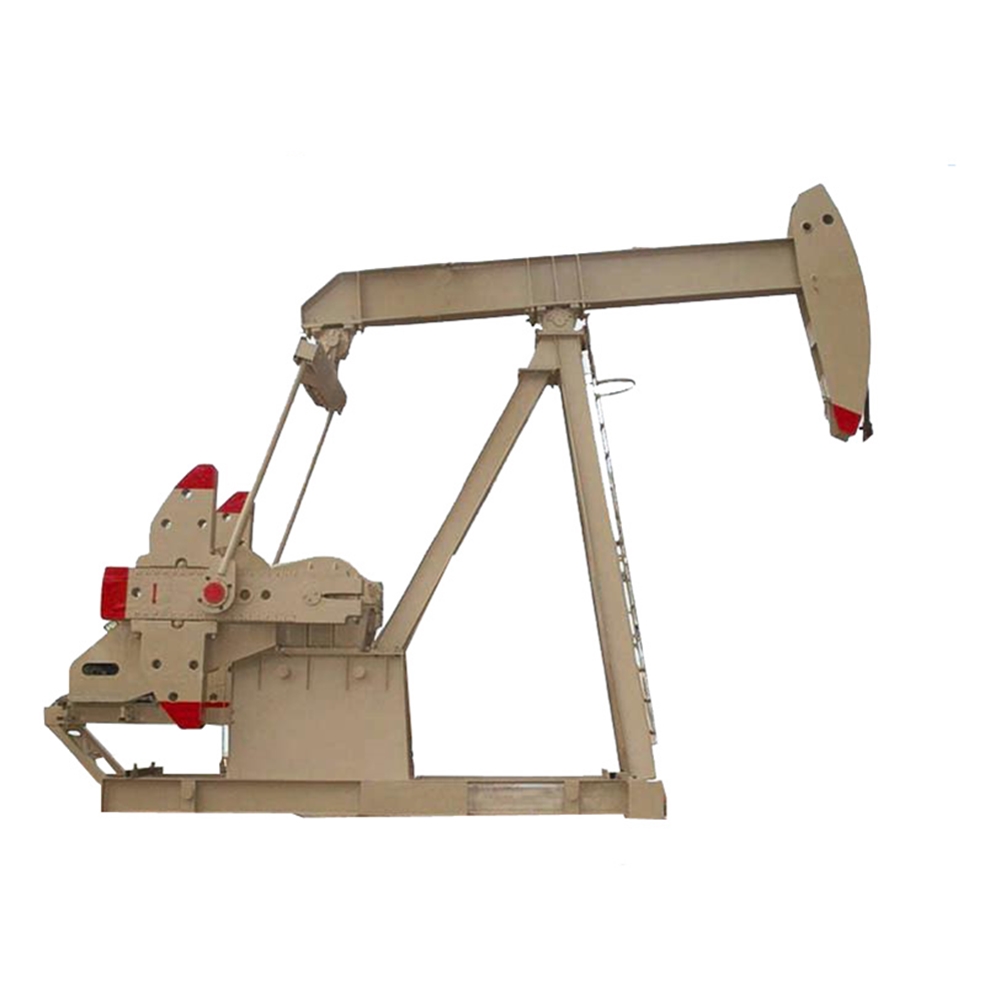

API C Series Pumping Unit

API C series pumping unit (pump jacks) is a conventional type of pumping unit. It adopts the crank balance method. It is the most common and widely used power equipment in oil field for rod production.
Our API C series pumping unit is produced according to API Spec 11E "Pumping Machine Specifications" and other relevant standards, and have obtained the API Monogram License.

Send Email Email : sales@bowcentralizers.com

Specification

Model	Polish Rod Capacity(lbs)	Stroke Lengths(in)	Peak Torque Rating( lbs .in)
C-1824D-427-240	42,700	240, 212, 196, 160	1,824,000
C-1280D-365-240	36,500	240, 212, 196, 160	1,280,000
C-1280D-305-240	30,500	240, 212, 196, 160	1,280,000
C-912D-470-240	47,000	240, 212, 196, 160	912,000
C-912D-427-216	42,700	216, 185, 155	912,000
C-912D-427-192	42,700	192, 165, 138	912,000
C-912D-305-192	30,500	192, 165, 138	912,000
C-912D-365-168	36,500	168, 144, 121	912,000
C-912D-305-168	30,500	168, 144, 121	912,000
C-912D-427-144	42,700	144, 123, 102	912,000
C-640D-305-192	30,500	192, 165, 138	640,000
C-640D-305-168	30,500	168, 144, 121	640,000
C-640D-365-144	36,500	144, 123, 102	640,000
C-640D-305-144	30,500	144, 123, 102	640,000
C-640D-256-144	25,600	144, 123, 102	640,000
C-640D-305-120	30,500	120, 102, 84	640,000
C-456D-305-168	30,500	168, 144, 121	57,000
C-456D-305-144	30,500	144, 123, 102	40,000
C-456D-256-144	25,600	144, 123, 102	57,000
C-456D-365-120	36,500	120, 102, 84	40,000
C-456D-305-120	30,500	120, 102, 84	25,000
C-456D-256-120	25,600	120, 102, 84	25,000
C-320D-256-144	25,600	144, 123, 102	320,000
C-320D-256-120	25,600	120, 102, 84	320,000
C-320D-213-120	21,300	120, 102, 84	320,000
C-320D-305-100	30,500	100, 85, 70	320,000
C-320D-256-100	25,600	100, 85, 70	320,000
C-320D-213-86	21,300	86, 71, 56	320,000
C-228D-213-120	21,300	120, 102, 84	228,000
C-228D-173-100	17,300	100, 86, 72	228,000
C-228D-246-86	24,600	86, 71, 56	228,000
C-228D-213-86	21,300	86, 71, 56	228,000
C-228D-200-74	20,000	74, 64, 54	228,000
C-228D-173-74	17,300	74, 64, 54	228,000
C-160D-173-86	17,300	86, 74, 62	160,000
C-160D-200-74	20,000	74, 64, 54	160,000
C-160D-173-74	17,300	74, 64, 54	160,000
C-160D-143-74	14,300	74, 64, 54	160,000
C-160D-173-64	17,300	64, 54, 44	160,000
C-114D-119-86	11,900	86, 72, 59	114,000
C-114D-143-74	14,300	74, 62, 51	114,000
C-114D-173-64	17,300	64, 54, 44	114,000
C-114D-143-64	14,300	64, 52, 40	114,000
C-114D-133-54	13,300	54, 45, 36	114,000
C-80D-119-64	11,900	64, 53, 42	80,000
C-80D-133-54	13,300	54, 45, 36	80,000
C-80D-119-54	11,900	54, 45, 36	80,000
C-80D-133-48	13,300	48, 40, 32	80,000
C-80D-109-48	10,900	48, 37, 25	80,000
C-57D-76-54	7,600	54, 41, 28	57,000
C-57D-109-48	10,900	48, 37, 25	57,000
C-57D-95-48	9,500	48, 37, 25	57,000
C-57D-89-42	8,900	42, 33, 23	57,000
C-57D-76-42	7,600	42, 33, 23	57,000
C-40D-76-48	7,600	48, 37, 27	40,000
C-40D-89-42	8,900	42, 33, 23	40,000
C-40D-76-42	7,600	42, 33, 23	40,000
C-40D-89-36	8,900	36, 28, 20	40,000
C-25D-67-36	6,700	36, 28, 20	25,000
C-25D-56-36	5,600	36, 28, 20	25,000
C-25D-53-30	5,300	30, 20	25,000
