fig 602 hammer union

Equipped with weak nitrile rubber sealing ring, used to seal and protect the union of union steel. It is recommended for manifold pipeline connection, vehicle-mounted and mud conveying occasions, and can be used for pressureless sealing union. Using butt welding Sch.80.

Send Email Email : sales@bowcentralizers.com

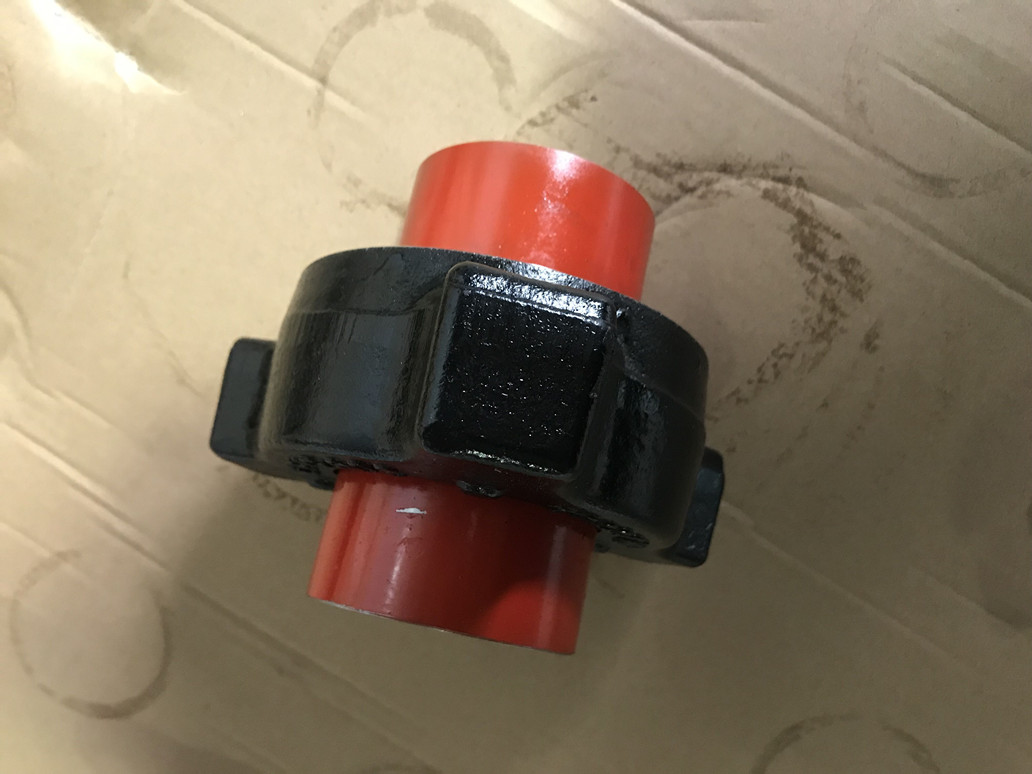

fig 602 hammer union

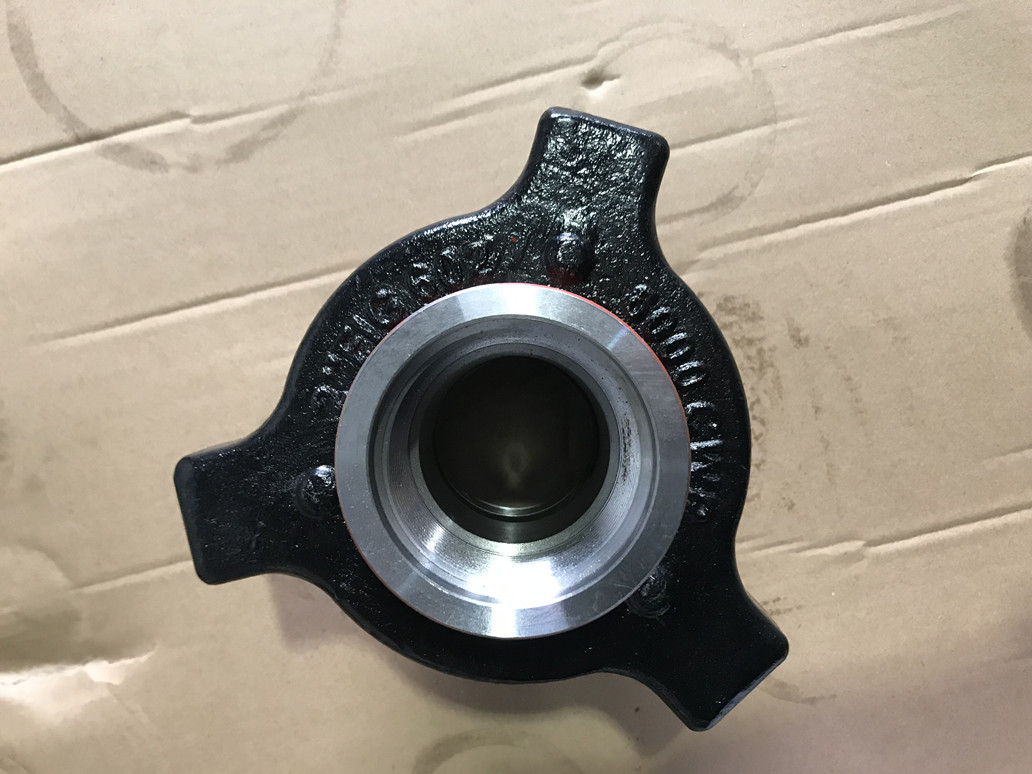

fig 602 hammer union

Specification

Type 602: 6000PSI NSCWP, test pressure: 9000PSI, black nut and orange part.

Product details

Nominal pipe size		Total length		Countersink		Nut radius		Material		Weight
Nominal pipe size		Total length		Countersink		Nut radius		Nut	Part	Weight
in	mm	in	mm	in	mm	in	mm			lb	kg
1	25.4	3-17/32	89.7	1/4	6.4	2-5/16	58.75	SF	SF	3.5	1.6
2	50.8	5-1/4	133.3	1/4	6.4	3-9/16	90.5	SF	SF	13.25	5.9
3	76.2	6-3/8	161.92	3/8	9.5	4-5/8	117.5	SF	SF	21.0	9.5
4	101.6	8-1/16	208.0	3/8	9.5	5-1/4	133.4	SF	SF	33	15
