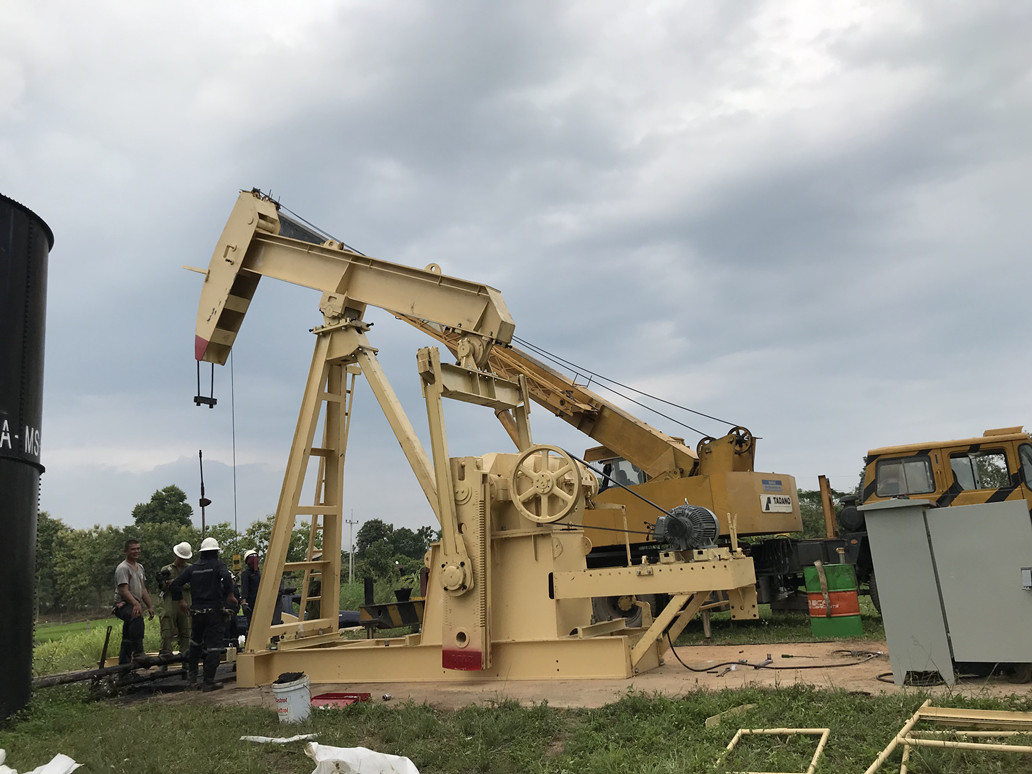

Pumping unit also called pump jacks is a kind of equipment for oil extraction, which used in oilfield. The pumping unit is the most important lifting equipment in the rod pumping system.
According to whether there is a beam, it can be divided into beam pumping unit and beamless pumping unit.
Beam pumping unit is devided into C series and B series groups. C series pump jacks are crank balance beam pumping unit, B series pump jacks are beam balance pumping unit.
Both types are manufactured in accordance with API 11E standard.
The main parts of pumping unit include the beam, horse head, reducer,pitman, samson post, base, equalizer, wireline, crank, counter weights, break assembly, also with fence and ladder,
if required, we also can equip the pumping unit with motor and control pannel. And the motor and control pannel could be explosion proof type.
The main parameters of pumping unit are polished rod capacity, stroke frequency, and stroke length.
| Pump jack parameter | ||||
| NO. | Pumping unit model | Lifting Capacity(lbs) | Stroke Length(in) | Rated torque(in.lbs) |
| 1 | C-912D-470-240 | 47,000 | 240 211 181 | 912,000 |
| 2 | C-912D-427-216 | 42,700 | 216 185 155 | 912,000 |
| 3 | C-912D-427-192 | 42,700 | 192 165 138 | 912,000 |
| 4 | C-912D-305-192 | 30,500 | 192 165 138 | 912,000 |
| 5 | C-912D-365-168 | 36,500 | 168 144 121 | 912,000 |
| 6 | C-912D-305-168 | 30,500 | 168 144 121 | 912,000 |
| 7 | C-912D-427-144 | 42,700 | 144 123 102 | 912,000 |
| 8 | C-640D-305-192 | 30,500 | 192 165 138 | 640,000 |
| 9 | C-640D-305-168 | 30,500 | 168 144 121 | 640,000 |
| 10 | C-640D-365-144 | 36,500 | 144 123 102 | 640,000 |
| 11 | C-640D-305-144 | 30,500 | 144 123 102 | 640,000 |
| 12 | C-640D-256-144 | 25,600 | 144 123 102 | 640,000 |
| 13 | C-640D-305-120 | 30,500 | 120 102 84 | 640,000 |
| 14 | C-456D-305-168 | 30,500 | 168 144 121 | 57,000 |
| 15 | C-456D-305-144 | 30,500 | 144 123 102 | 40,000 |
| 16 | C-456D-256-144 | 25,600 | 144 123 102 | 57,000 |
| 17 | C-456D-365-120 | 36,500 | 120 102 84 | 40,000 |
| 18 | C-456D-305-120 | 30,500 | 120 102 84 | 25,000 |
| 19 | C-456D-256-120 | 25,600 | 120 102 84 | 25,000 |
| 20 | C-320D-256-144 | 25,600 | 144 123 102 | 320,000 |
| 21 | C-320D-256-120 | 25,600 | 120 102 84 | 320,000 |
| 22 | C-320D-213-120 | 21,300 | 120 102 84 | 320,000 |
| 23 | C-320D-305-100 | 30,500 | 100 85 70 | 320,000 |
| 24 | C-320D-256-100 | 25,600 | 100 85 70 | 320,000 |
| 25 | C-320D-213-86 | 21,300 | 86 71 56 | 320,000 |
| 26 | C-228D-213-120 | 21,300 | 120 102 84 | 228,000 |
| 27 | C-228D-173-100 | 17,300 | 100 86 72 | 228,000 |
| 28 | C-228D-246-86 | 24,600 | 86 71 56 | 228,000 |
| 29 | C-228D-213-86 | 21,300 | 86 71 56 | 228,000 |
| 30 | C-228D-200-74 | 20,000 | 74 64 54 | 228,000 |
| 31 | C-228D-173-74 | 17,300 | 74 64 54 | 228,000 |
| 32 | C-160D-173-86 | 17,300 | 86 74 62 | 160,000 |
| 33 | C-160D-200-74 | 20,000 | 74 64 54 | 160,000 |
| 34 | C-160D-173-74 | 17,300 | 74 64 54 | 160,000 |
| 35 | C-160D-143-74 | 14,300 | 74 64 54 | 160,000 |
| 36 | C-160D-173-64 | 17,300 | 64 54 44 | 160,000 |
| 37 | C-114D-119-86 | 11,900 | 86 72 59 | 114,000 |
| 38 | C-114D-143-74 | 14,300 | 74 62 51 | 114,000 |
| 39 | C-114D-173-64 | 17,300 | 64 54 44 | 114,000 |
| 40 | C-114D-143-64 | 14,300 | 64 52 40 | 114,000 |
| 41 | C-114D-133-54 | 13,300 | 54 45 36 | 114,000 |
| 42 | C-80D-119-64 | 11,900 | 64 53 42 | 80,000 |
| 43 | C-80D-133-54 | 13,300 | 54 45 36 | 80,000 |
| 44 | C-80D-119-54 | 11,900 | 54 45 36 | 80,000 |
| 45 | C-80D-133-48 | 13,300 | 48 40 32 | 80,000 |
| 46 | C-80D-109-48 | 10,900 | 48 37 25 | 80,000 |
| 47 | C-57D-76-54 | 7,600 | 54 41 28 | 57,000 |
| 48 | C-57D-109-48 | 10,900 | 48 37 25 | 57,000 |
| 49 | C-57D-95-48 | 9,500 | 48 37 25 | 57,000 |
| 50 | C-57D-89-42 | 8,900 | 42 33 23 | 57,000 |
| 51 | C-57D-76-42 | 7,600 | 42 33 23 | 57,000 |
| 52 | C-40D-76-48 | 7,600 | 48 37 27 | 40,000 |
| 53 | C-40D-89-42 | 8,900 | 42 33 23 | 40,000 |
| 54 | C-40D-76-42 | 7,600 | 42 33 23 | 40,000 |
| 55 | C-40D-89-36 | 8,900 | 36 28 20 | 40,000 |
| 56 | C-25D-67-36 | 6,700 | 36 28 20 | 25,000 |
| 57 | C-25D-56-36 | 5,600 | 36 28 20 | 25,000 |
| 58 | C-25D-53-30 | 5,300 | 30 20 | 25,000 |
